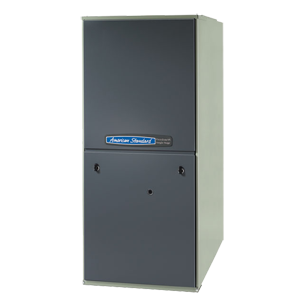

AUH2 Gold XM 95% Gas Furnace
The Gold XM two-stage gas furnace delivers one of the highest efficiencies in the industry, providing superior performance for the ultimate comfort experience.
- Direct Drive, 4-Speed Motor
- Up to 96% AFUE
- Two Stage Operation
- PVC venting - 1 or 2 pipe
- Integrated solid state control with self-diagnostics
- Silicon Nitride igniter with adaptive heat up
- Insulated cabinet for quiet operation
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| AUH2B080A942V | 80.0 | 76.8 | 96.0 | 824 | 40x17.5x28 | 146 | |
| AUH2C100A948V | 100.0 | 96.0 | 96.0 | 1068 | 40x21x28 | 169 | |
| AUH2D120A960V | 120.0 | 115.2 | 96.0 | 1242 | 40x24.5x28 | 193 | |
| AUH2B060A936V | 60.0 | 57.6 | 96.0 | 570 | 40x17.5x28 | 138 |
Warranty Information
- All Parts for 120 months -
- Heat Exchanger - Limited Lifetime
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Installation & Operation, In the Box)
- View Document (AUH2B080A942VA, Specification Sheet, Technical Information)
- View Document (Owners Manual, Customer Information)
- View Document (Consumer Literature, Customer Information, Color)
- View Document (AUH2C100A948VA, Specification Sheet, Technical Information)
- View Document (AUH2B060A936VA, Specification Sheet, Technical Information)
