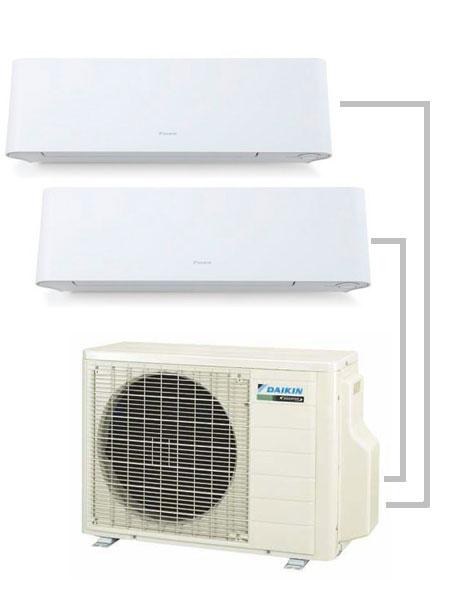

MXS Multi-Split Heat Pump Systems
Daikin’s 2-port, 3-port, and 4-port multi-split systems can serve up to four rooms from a single outdoor unit. With indoor unit options consisting of streamlined wall mount units, built-in slim duct units, or a combination of both, multi-split systems offer over 1,000 possible connection combinations, creating a flexible, powerful and energy efficient system. Integrated with an inverter “variable speed” compressor, systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by 30% compared to traditional fixed speed systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort with maximum energy savings.
- 3 D Airflow (Wall Indoor Units)
- Indoor Unit Quiet Operation
- Intelligent Eye (Wall Indoor Units)
- Automatic Operation
- Program Dry Function
- Auto Fan Speed
- Mold Proof Air Filter
- Remote Controller with backlit display
- LCD Wireless Remote Control
- Indoor Unit On/Off Timer
- 24 Hour On/Off Timer
- Self Diagnosis with Digital Display
| MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
|---|---|---|---|---|---|---|---|---|---|
| FTXS18LVJU | Indoor Wall | RXS18LVJU, *MXS** | 18.0 | 20.3 | 21.6 | 11.0 | 1/4 - 1/2 | 13.3x41.3x9.7 | 31 |
| FTXS24LVJU | Indoor Wall | RXS24LVJU, *MXS** | 21.5 | 20.0 | 25.4 | 10.6 | 1/4 - 1/2 | 13.3x41.3x9.7 | 31 |
| CTXS07LVJU | Indoor Wall | *MXS** | 7.0 | 0.0 | 7.0 | 0.0 | 1/4 - 3/8 | 11.6x31.5x8.5 | 20 |
| CTXS09HVJU | Indoor Wall | *MXS** | 9.0 | 0.0 | 9.0 | 0.0 | 1/4 - 3/8 | 11.5x31.3x9.3 | 20 |
| CTXS12HVJU | Indoor Wall | *MXS** | 12.0 | 0.0 | 12.0 | 0.0 | 1/4 - 1/2 | 11.5x31.3x9.3 | 30 |
| FDXS09LVJU | Indoor Ducted | *MXS** | 9.0 | 0.0 | 9.0 | 0.0 | 1/4 - 3/8 | 7.9x27.6x24.5 | 47 |
| FDXS12LVJU | Indoor Ducted | *MXS** | 12.0 | 0.0 | 12.0 | 0.0 | 1/4 - 1/2 | 7.9x27.6x24.5 | 47 |
| CDXS15LVJU | Indoor Ducted | *MXS** | 15.0 | 0.0 | 15.0 | 0.0 | 1/4 - 1/2 | 7.9x35.5x24.5 | 60 |
| CDXS18LVJU | Indoor Ducted | *MXS** | 18.0 | 0.0 | 18.0 | 0.0 | 1/4 - 1/2 | 7.9x35.5x24.5 | 60 |
| 2MXS18GVJU | Outdoor | 2 Indoor Units | 18.0 | 19.5 | 22.0 | 9.2 | 28.9x32.5x11.8 | 139 | |
| 3MXS24JVJU | Outdoor | 3 Indoor Units | 24.0 | 16.3 | 30.0 | 9.0 | 30.3x35.5x12.6 | 168 | |
| 4MXS32GVJU | Outdoor | Up To 4 Indoor Units | 30.6 | 17.2 | 32.0 | 9.3 | 30.3x35.5x12.6 | 168 |
Warranty Information
- Compressor for 84 months - 7 Year Compressor Warranty
- All Parts for 60 months - 5 Year Parts Warranty
- Limited Labor for 12 months - 1 Year Limited Labor
Available Documents
- 223-5512.pdf (Color, Consumer Literature)
- 223-5514.pdf (LV Indoor Unit 15, 18, 24, In the Box, Installation & Operation)
- 223-17145.pdf (Technical Information, Specification Sheet)
- 223-20232.pdf (Technical Information, Specification Sheet)
