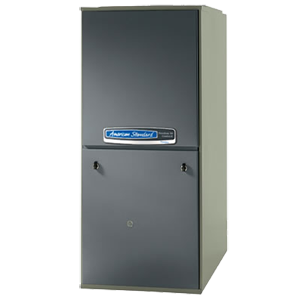

92% Single-Stage Furnace
Model Number and Description
- AUX1D120A9H51B Gas Furnace
- High-Efficiency, Variable-Speed Blower Motor
- Variable-Speed Draft Inducer
- Airflow - Upflow Convertible to Horizontal Left
- PVC Venting - 1 or 2 Pipe Options
- Integrated Solid-State Control with Self-Diagnostic and Memory
- Gasketed Blower Door
- Multi-Port In-Shot Burners
- Optional L. P. Conversion Kit
- Cleanable High-Velocity Filters
- Hinged Blower Door
- Adaptive Silicon-Nitride Hot Surface Ignitor
- Automotive-Grade Gaskets and Insulated Blower Compartment
- Primary aluminized steel heat exchanger
- Crimped, Not Welded, to Prevent Cracks from Heat Stress.
- Stainless-Steel Secondary Heat Exchanger
- Sealed Combustion
- Easy-Access Doors
- 100% Fresh-Air Option
- Heating Input MBTU/h: 120
- Heating Output MBTU/h: 112
- Efficiency AFUE: 92%
- Nominal Airflow CFM: 1315 - 2153
- Maximum Temperature Rise: 70°F
- Blower Motor HP: 1
- Electrical Performance
- Power Supply: 115V
- Total Unit Amps: 14.5
- Maximum Fuse Size Amps: 20
- Dimensions:
- Height Inches: 40.0
- Width Inches: 24.5
- Depth Inches: 28.0
- Weight Pounds: 193
- Lifetime limited warranty on heat exchangers
- 5-year limited warranty on all functional parts
Variable-Speed, Single-Stage Furnace
